Industrial filters MSF Article MSF-4
Industrial filter MSF-4
MSF-4: preliminary selection of a cassette filter for a flow rate of 4 000 m³/h. The efficiency and material of the cassettes are confirmed by calculation.
Calculated after specifying the performance, execution and composition of the supply.
Send us the parameters or technical specifications - the engineer will specify the equipment for your facility.
- Air consumption
- 4,000 m³/h
- Preliminary performance
- 4 000 m³/h
- Number of cassettes
- 8
- Filtration area
- ~80 m²
Engineering solution
What this equipment is designed to solve
Industrial filter MSF-4— cassette filter unit for preliminary selection of dust extraction. Card reference: flow rate 4,000 m³/h, number of cassettes – 8, filtration area – ~80 m².
The operating point, cassette material and residual dust content depend on the dispersion, humidity, stickiness and explosiveness of the dust, gas temperature and regeneration mode. These parameters are confirmed by calculations and a certificate of approved execution.
Application
Suitable applications
- Dust extraction of dry industrial dust after analyzing its properties
- Centralized and local systems with pulse regeneration
- Selection of filter material based on temperature, humidity and dispersion
Preliminary parameters
Characteristics
Values are not contractual until the selected configuration is confirmed in the technical proposal and data sheet.
| Preliminary performance | 4 000 m³/h |
|---|---|
| Number of cassettes | 8 |
| Filtration area | ~80 m² |
| Filter material | Selected according to dust properties and gas temperature |
The model range is not confirmed by separate passports in the current site set; the values are used for preliminary comparison and verified in the technical proposal.
For procurement and approval
Documentation
Request the available datasheet, drawing or certificates together with the quotation.
Frequently Asked Questions
What is needed is gas flow and temperature, type and dispersion of dust, initial and required residual dust content, humidity, stickiness, abrasiveness, explosion hazard, operating mode and the availability of compressed air.
No. The target indicator is fixed only after checking the initial data, selecting the filter material and calculating the filtration area.
Related services
Similar equipment

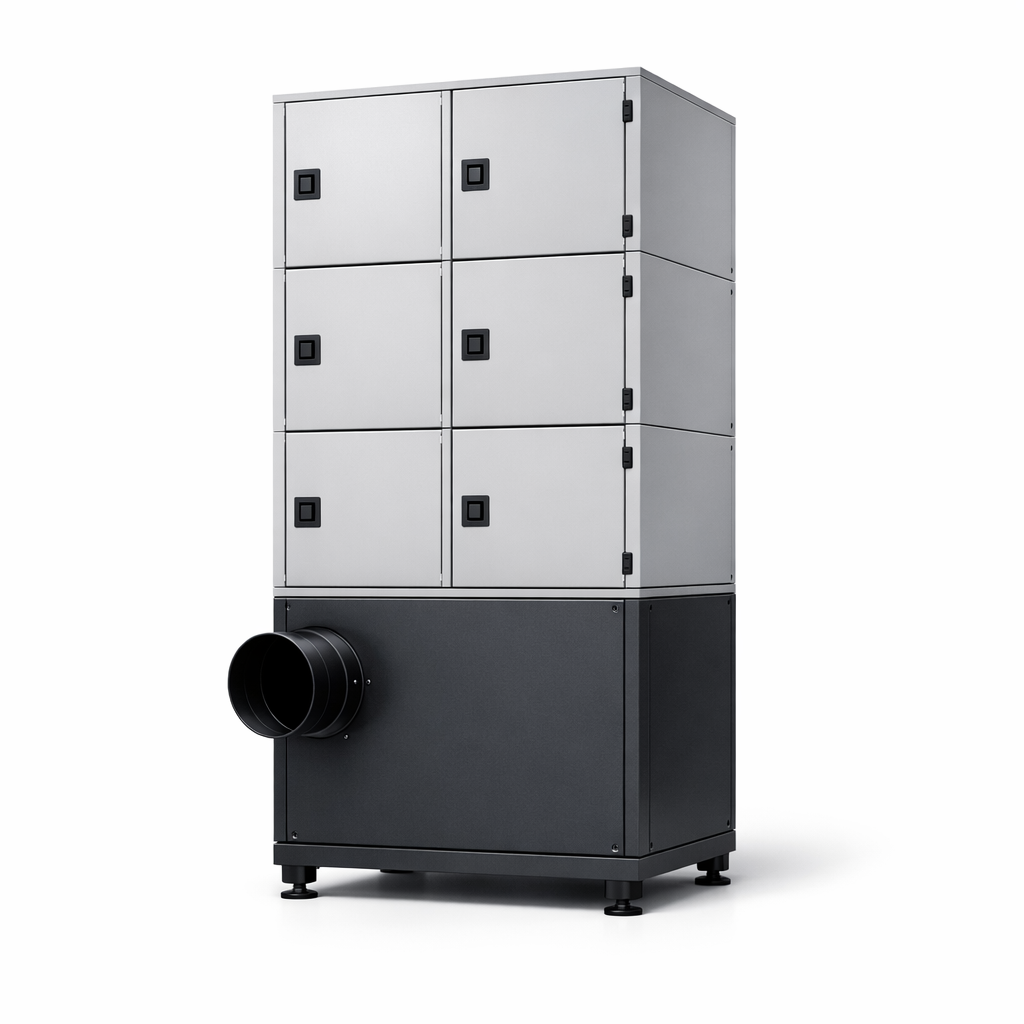

Industrial filters of the MSF series are self-cleaning cassette filter units of ABL Engineering Group’s own production for dust extraction systems of industrial enterprises in Kazakhstan. Cleaning efficiency of 99.5% is ensured by polyester cassettes with a PTFE membrane and an automatic pulse regeneration system with compressed air.
The MSF-2 – MSF-20+ model range covers productivity from 2,000 to 20,000+ m³/h, which allows you to select a filter for any production site. The modular design allows for increasing productivity by adding sections.
Do you need to select equipment for your project?
Send the terms of reference, questionnaire or basic parameters. We will prepare a complete set and a commercial offer.
