Item: ABL-TSK
Duct axial fan ABL-TSK
- Type: Channel coaxial (inline), axial wheel
- Air consumption: 290 – 1,875 m³/h
- Pressure: 350 – 830 Pa
- Mounting: Duct-mounted
Equipment
Item: ABL-SDF
Mobile welding dust collector ABL-SDF
- Type: Mobile dust collector for welding fume
- Productivity: 1,600 – 3,000 m³/h
- Filtration fineness: from 0.3 microns, horizontal cartridges
- Mounting: Floor-mounted
Item: ABL-XFRCU
Roof fan ABL-XFRCU
- Type: Roof axial discharge (upblast)
- Housing: Solid aluminum alloy, laser cut
- Pressure: ≈155 – 250 Pa
- Mounting: Duct-mounted
Item: ABL-BF
Bag dust collector ABL-BF
- Type: Bag dust collector (fabric filter)
- Cleaning principle: Filtration through fabric bags, dust deposition on the surface
- Productivity: For the project - according to air consumption and dust levels
- Mounting: Floor-mounted
Item: ABL-XFB
Smoke extraction fan ABL-XFB
- Type: Centrifugal smoke exhaust fan, heat-resistant wheel
- Temperature: Up to +600 °C for 120 minutes
- Series: ABL-XFB (up to 221,730 m³/h, up to 3,202 Pa - design size)
- Mounting: Duct-mounted
Item: ABL-DF
Cartridge dust collector ABL-DF
- Type: Cartridge dust collector with pulse regeneration
- Productivity: 1,800 – 13,000 m³/h (ABL-DFK/DFKL - up to 25,000 m³/h)
- Filtration fineness: from 0.3 microns, PTFE-coated cartridges
- Mounting: Floor-mounted
Item: ABL-XFB
Centrifugal fan ABL-XFB
- Type: Centrifugal (radial), backward-inclined blades
- Air consumption: 530 – 221,730 m³/h (by standard size)
- Static pressure: 99 – 3 202 Pa
- Mounting: Duct-mounted
Industrial gas purification complex
- Composition of the complex: Dust removal + FGD + SCR/SNCR + ash transport
- Dust removal: Electrical precipitator, bag filter or hybrid circuit - according to the initial data of the object
- Desulfurization: Wet, dry or semi-dry FGD - after analysis of gas composition and reagents
- Mounting: Floor-mounted
Bag filter for gas purification
- ABL-FR bag filters: size range: bags, filtration area, airflow, dimensions
- ABL-FR-30: 30 bags, F 30.6 m², 2,400 m³/h, footprint 1400×1200 mm, height 4,279 mm, compressed air 0.14 Nm³/min
- ABL-FR-49: 48 bags, F 49 m², 3,800 m³/h, footprint 1800×1400 mm, height 4,452 mm, compressed air 0.22 Nm³/min
- Mounting: Floor-mounted
Item: ESP
Industrial Electrostatic Filter ESP
- Type: Industrial electrostatic filter (workshop)
- Principle: Corona discharge, deposition of charged particles on plates
- Efficiency: Up to 95%; up to 99% for hybrid versions - according to line overview, with confirmation for the selected configuration
- Mounting: Floor-mounted
Item: ABL-TAHM

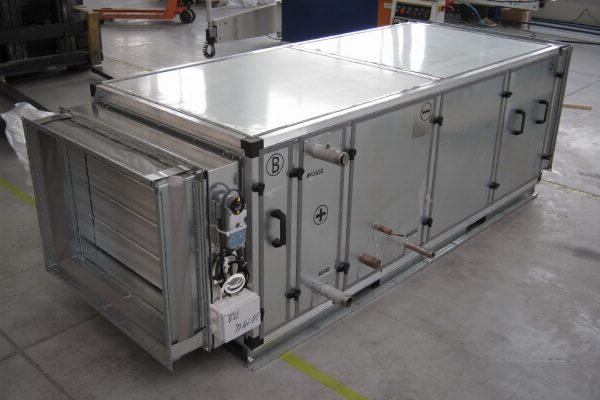

Air handling unit BL
- Size range: BL-0.5…BL-40 (500–40,000 m³/h) — standard; BL-50…BL-120 — special order
- Casing: aluminium profile frame, 25 mm (BL-0.5…4) and 50 mm (BL-5…120) sandwich panels with PU foam
- Schemes: 15 basic schemes: supply, supply-exhaust, recirculation and heat recovery
- Mounting: Floor-mounted
Made to order
Citec G-Volution precision air conditioners
- Brand: Citec
- Series: G-Volution
- Type: Precision air conditioner (DX or CW)
Need equipment selection for a project?
Send a technical brief, specification or drawings — ABL Engineering Group engineers will select the equipment, estimate the cost and prepare a technical proposal.
Industrial equipment and products for engineering systems
The catalog contains products of ABL Engineering Group’s own production in Temirtau and equipment that is selected according to the parameters of the industrial facility. The cards are not intended for the retail cart, but for pre-selection, requesting documentation and preparing a commercial offer.
What can be submitted for selection
- terms of reference, specification or equipment list;
- drawing in PDF, DWG or DXF;
- air flow, pressure, temperature, gas or dust properties;
- requirements for material, automation, installation and operating conditions.
How is the cost formed?
For standard products manufactured by ABL, standard sizes from the 2026 price list, edition 06.26.2026, have been published; prices include VAT 16%. The final price, equipment, production time, delivery and installation are fixed in the commercial proposal after checking the specifications. For project equipment, the cost is calculated based on the initial data of the object.
