Air ducts Article VD-PR

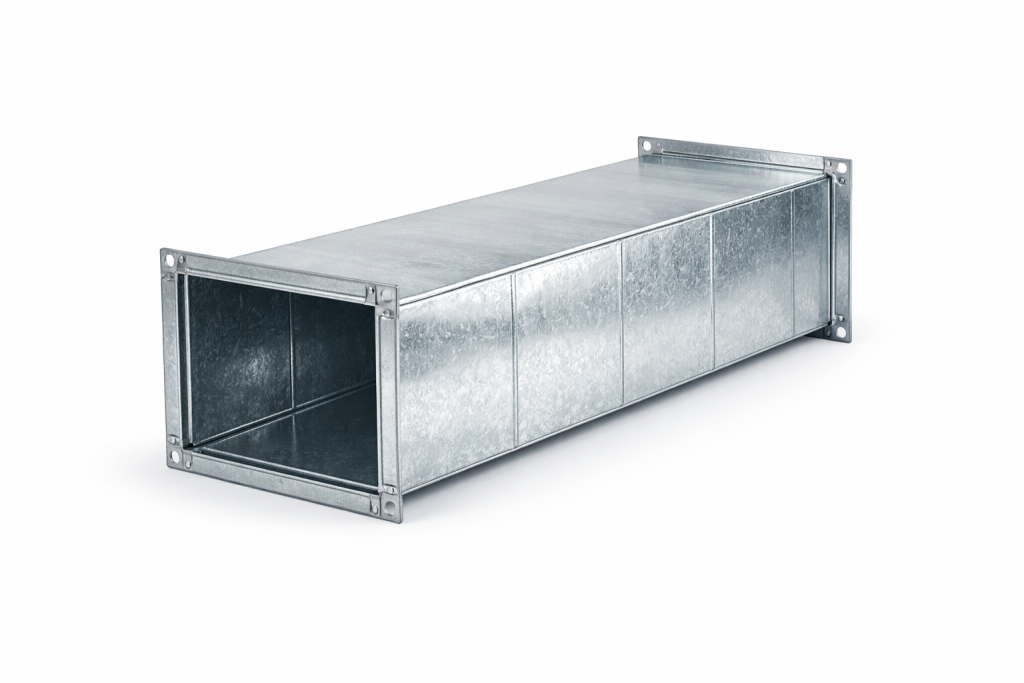

Rectangular air ducts
Rectangular air ducts made of galvanized and carbon steel of any section. Standard section length is 1250 mm, any length upon request.…
The final cost depends on the design and agreed upon configuration.
Send us the parameters or technical specifications - the engineer will specify the equipment for your facility.
- Side up to 350 mm
- Air duct 9,186 tenge/m² · fittings 10,243 tenge/m²
- Side 400–650 mm
- Air duct 11,530 tenge/m² · fittings 12,245 tenge/m²
- Side 700–1000 mm
- Air duct 12,203 tenge/m² · fittings 13,512 tenge/m²
- Side over 1000 mm 0.9 mm
- Air duct 13,833 tenge/m² · fittings 15,065 tenge/m²
Engineering solution
What this equipment is designed to solve
Rectangular air ducts made of galvanized and carbon steel of any section. Standard section length is 1250 mm, any length upon request.
Benefits
- Any section to suit the project requirements
- Compact installation in confined spaces (low ceilings, suspended structures)
- Flange connection with busbar L20 (up to 650 mm) or L30 (from 700 mm)
- Material: galvanized or carbon steel
Application
Suitable applications
- Supply and exhaust ventilation of buildings
- Systems with limited ceiling height
- Industrial ventilation
- Air conditioning systems
- Smoke removal
Technical data
Characteristics
| Side up to 350 mm | Air duct 9,186 tenge/m² · fittings 10,243 tenge/m² |
|---|---|
| Side 400–650 mm | Air duct 11,530 tenge/m² · fittings 12,245 tenge/m² |
| Side 700–1000 mm | Air duct 12,203 tenge/m² · fittings 13,512 tenge/m² |
| Side over 1000 mm 0.9 mm | Air duct 13,833 tenge/m² · fittings 15,065 tenge/m² |
| Side over 1000 mm 1.0 mm | Air duct 14,945 tenge/m² · fittings 16,177 tenge/m² |
Production price list 2026, edition 06.26.2026 · prices including VAT 16% The total cost and validity period of the price are fixed in the quotation.
Source of sizes and price lines: ABL 2026 production price list, edition 06/26/2026. The final execution is confirmed in the commercial proposal.
For procurement and approval
Documentation
Frequently Asked Questions
The rectangular section, steel thickness and type of connection are determined according to the customer’s project or drawing. For non-standard sizes, we check the development, rigidity, installation restrictions and tightness requirements.
Galvanized steel 08ps, thickness 0.5–1.0 mm. For aggressive environments – stainless steel AISI 304/316. The thickness is selected according to the operating conditions.
The period depends on the execution, configuration, batch size and current production load. After checking the technical specifications, we fix it in the commercial proposal and contract.
The standard length is 1.25 m. On request, we produce sections of 2.5 m and 3.0 m to reduce the number of connections on site.
Similar equipment
Do you need to select equipment for your project?
Send the terms of reference, questionnaire or basic parameters. We will prepare a complete set and a commercial offer.
