Air ducts Article VD-SN

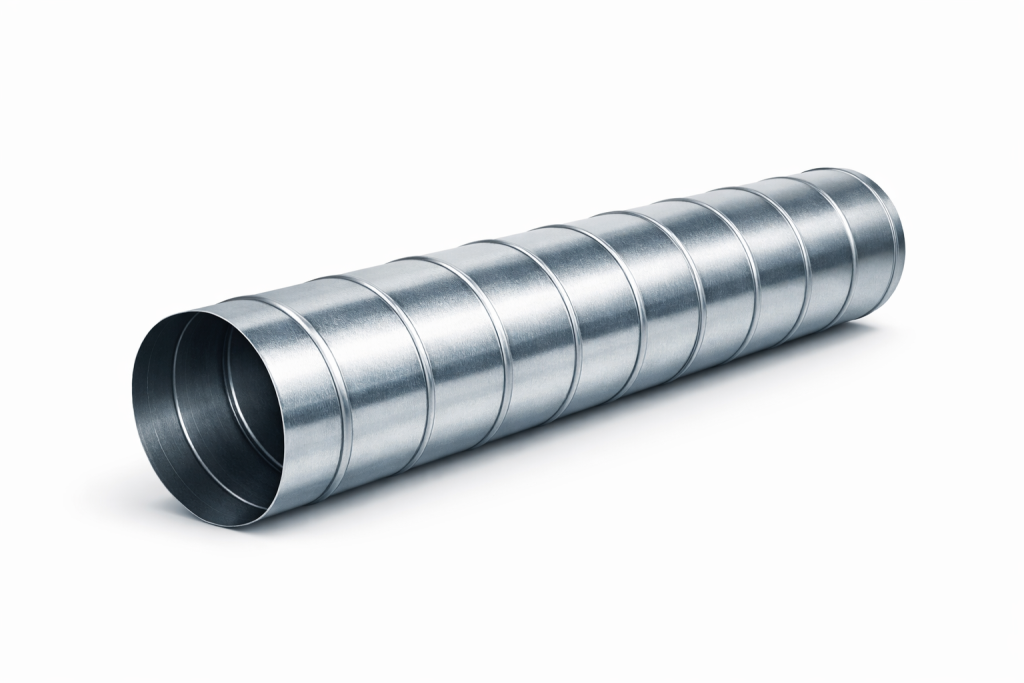

Round spiral air ducts
Round air ducts made of galvanized steel, manufactured by spiral winding. Diameters from Ø100 to Ø1250 mm. Corresponds to VSN 353-86, TU…
The final cost depends on the design and agreed upon configuration.
Send us the parameters or technical specifications - the engineer will specify the equipment for your facility.
- Ø100 · area 0.314 m²/rm
- 2,435 tenge/l.m · 7,755 tenge/m²
- Ø125 · area 0.393 m²/rm
- 3,048 tenge/l.m · 7,755 tenge/m²
- Ø140 · area 0.440 m²/rm
- 3,412 tg/p.m · 7,755 tg/m²
- Ø150 · area 0.471 m²/rm
- 3,653 tenge/l.m · 7,755 tenge/m²
Engineering solution
What this equipment is designed to solve
Round air ducts made of galvanized steel, manufactured by spiral winding. Diameters from Ø100 to Ø1250 mm. Corresponds to VSN 353-86, TU 36-736-93.
Advantages of spiral-wound air ducts
- Increased rigidity thanks to spiral seam at low weight
- Low noise level – quieter than rectangular counterparts
- Sealed spiral connection – minimal air loss
- Smooth inner surface – low aerodynamic drag
- Anti-corrosion protection – zinc coating, service life up to 25 years
- Section length up to 6 m (Ø≤500 mm) – fewer connections, quick installation
Material
Galvanized steel GOST 14918-80. Thickness: 0.5 mm (Ø100–355), 0.7 mm (Ø400–800), 0.9 mm (Ø900–1250). Connection: bandage (standard), flange – on request.
Application
Suitable applications
- Supply and exhaust ventilation of buildings
- Industrial ventilation of workshops and warehouses
- Air conditioning systems
- Smoke removal systems
- Connecting ventilation equipment
Technical data
Characteristics
| Ø100 · area 0.314 m²/rm | 2,435 tenge/l.m · 7,755 tenge/m² |
|---|---|
| Ø125 · area 0.393 m²/rm | 3,048 tenge/l.m · 7,755 tenge/m² |
| Ø140 · area 0.440 m²/rm | 3,412 tg/p.m · 7,755 tg/m² |
| Ø150 · area 0.471 m²/rm | 3,653 tenge/l.m · 7,755 tenge/m² |
| Ø160 · area 0.502 m²/rm | 3,893 tenge/l.m · 7,755 tenge/m² |
| Ø200 · area 0.628 m²/rm | 4,870 tenge/l.m · 7,755 tenge/m² |
| Ø250 · area 0.785 m²/rm | 6,088 tenge/l.m · 7,755 tenge/m² |
| Ø315 · area 0.989 m²/rm | 7,670 tenge/l.m · 7,755 tenge/m² |
| Ø355 · area 1,115 m²/rm | 8,647 tenge/l.m · 7,755 tenge/m² |
| Ø400 · area 1,256 m²/rm | 11,696 tenge/l.m · 9,312 tenge/m² |
| Ø450 · area 1,413 m²/rm | 13,158 tenge/l.m · 9,312 tenge/m² |
| Ø500 · area 1,570 m²/rm | 14,620 tenge/l.m · 9,312 tenge/m² |
| Ø560 · area 1,774 m²/rm | 16,519 tenge/sq.m · 9,312 tenge/m² |
| Ø630 · area 1,978 m²/rm | 18,419 tenge/l.m · 9,312 tenge/m² |
| Ø710 · area 2,256 m²/rm | 21,008 tenge/s.m. 9,312 tenge/m² |
| Ø800 · area 2,512 m²/rm | 23,392 tenge/l.m · 9,312 tenge/m² |
| Ø900 · area 2,826 m²/rm | 31,513 tenge/l.m · 11,151 tenge/m² |
| Ø1000 · area 3,140 m²/rm | 35,014 tenge/l.m · 11,151 tenge/m² |
| Ø1250 · area 3.925 m²/rm | 43,768 tenge/l.m · 11,151 tenge/m² |
Production price list 2026, edition 06.26.2026 · prices including VAT 16% The total cost and validity period of the price are fixed in the quotation.
Source of sizes and price lines: ABL 2026 production price list, edition 06/26/2026. The final execution is confirmed in the commercial proposal.
For procurement and approval
Documentation
Frequently Asked Questions
We produce 11 standard sizes – from Ø100 to Ø1250 mm (spiral) and any rectangular section according to the project. Non-standard sizes – according to customer drawings.
Galvanized steel 08ps, thickness 0.5–1.0 mm. For aggressive environments – stainless steel AISI 304/316. The thickness is selected according to the operating conditions.
The period depends on the execution, configuration, batch size and current production load. After checking the technical specifications, we fix it in the commercial proposal and contract.
The standard length is 1.25 m. On request, we produce sections of 2.5 m and 3.0 m to reduce the number of connections on site.
